Understanding AWS VPC: Architecture, Components & Best Practices

Amazon VPC (Virtual Private Cloud) is one of the most fundamental services in AWS. It allows developers to create a logically isolated network where they can deploy and manage resources securely. Whether you’re building a small application or a large-scale distributed system, understanding VPC is essential.

Understanding VPC

A VPC is essentially your own private network inside AWS. It gives you full control over:

• IP address ranges (CIDR blocks)
• Subnets (public and private)
• Routing rules
• Security configurations

Think of it as:

“A secure, customizable network layer where your cloud resources live.”

Core Components of VPC

Subnets

Subnets divide your VPC into smaller networks:

• Public Subnet

  • Accessible from the internet
  • Used for web servers or load balancers

• Private Subnet

  • No direct internet access
  • Used for backend services and databases

Internet Gateway (IGW)

An Internet Gateway allows communication between your VPC and the internet. It is attached to the VPC and used by public subnets.

NAT Gateway

A NAT Gateway allows instances in a private subnet to access the internet without exposing them to inbound traffic.

Example:

• Backend server downloading updates
• Calling external APIs securely

Route Tables

Route tables define how traffic flows inside your VPC.

Example:

Public Subnet:
0.0.0.0/0 → Internet Gateway

Private Subnet:
0.0.0.0/0 → NAT Gateway

Security Groups vs NACL

• Security Groups

  • Stateful
  • Applied at instance level
  • Most commonly used

• Network ACL (NACL)

  • Stateless
  • Applied at subnet level
  • Provides additional security layer

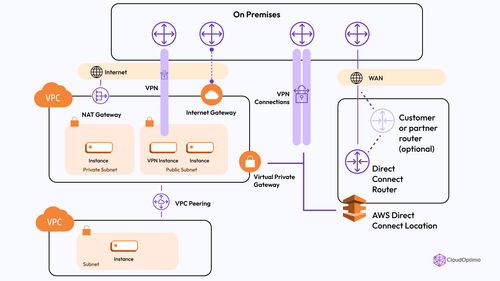

Real-World Architecture Example

Let’s design a secure backend system:

                Internet
                    |
           [Internet Gateway]
                    |
           ---------------------
           |   Public Subnet   |
           |   (Web Server)    |
           ---------------------
                    |
              [NAT Gateway]
                    |
           ---------------------
           |  Private Subnet   |
           |  (Backend API)    |
           |  (Database)       |
           ---------------------

How It Works

1. User requests hit the public web server
2. Web server communicates with backend API (private subnet)
3. Backend interacts with database (private subnet)
4. Database is never exposed to the internet

This ensures:

• Security
• Controlled access
• Scalable architecture

Common Use Cases for VPC

• Hosting secure web applications
• Microservices architecture
• Backend APIs with private databases
• Enterprise-grade cloud systems

Best Practices for Using VPC

• Keep databases in private subnets
• Use NAT Gateway for outbound access
• Restrict inbound traffic using Security Groups
• Avoid using 0.0.0.0/0 unnecessarily
• Separate environments (dev, staging, prod) into different VPCs

Common Mistakes

• Placing sensitive resources in public subnets ❌
• Overly permissive security group rules ❌
• Not using NAT Gateway ❌
• Poor subnet design ❌

Conclusion

Amazon VPC is not just another AWS service—it is the backbone of your cloud infrastructure. A well-designed VPC ensures that your application is secure, scalable, and production-ready.

Understanding VPC deeply allows you to:

• Build secure systems
• Design scalable architectures
• Perform better in cloud interviews
