Security Groups vs NACL in AWS: Key Differences Explained with Examples

When working with AWS VPC, one of the most common interview questions and real-world challenges is understanding the difference between Security Groups and Network ACLs (NACLs).

Both are used to control traffic, but they operate at different levels and behave very differently.

Why This Matters

If you misconfigure these:

• You might expose your server to the internet ❌
• Or accidentally block valid traffic ❌

Understanding both is critical for secure cloud architecture

What is a Security Group?

A Security Group acts as a firewall at the instance level.

• Attached to EC2 instances
• Controls inbound & outbound traffic
• Stateful (important!)

🧠 Stateful Meaning

If you allow inbound traffic:

Port 80 → Allowed

👉 Response traffic is automatically allowed, even if outbound rules don’t explicitly allow it.

What is a NACL (Network ACL)?

A Network ACL acts as a firewall at the subnet level.

• Applied to entire subnet
• Controls traffic entering & leaving subnet
• Stateless (very important)

Stateless Meaning

If you allow inbound:

Port 80 → Allowed

👉 You must ALSO explicitly allow outbound response traffic Otherwise → request fails ❌

⚔️ Security Group vs NACL (Core Differences)

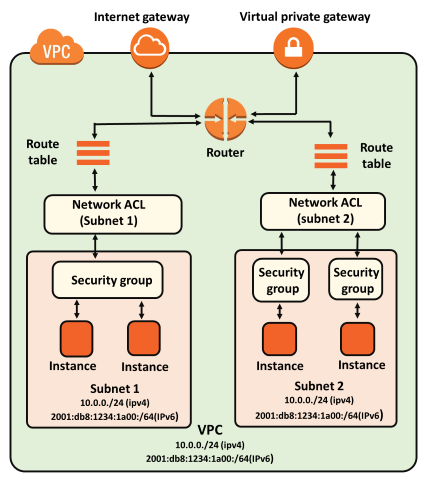

🔍 How They Work Together

Internet
   |
[NACL]
   |
[Subnet]
   |
[Security Group]
   |
[EC2 Instance]

👉 Traffic must pass through:

1. NACL
2. Security Group

💡 Real-World Example

Let’s say:

• Web server in public subnet
• Database in private subnet

Security Group setup:

• Allow HTTP (80) from internet → web server
• Allow DB access only from backend server

NACL setup:

• Allow HTTP traffic at subnet level
• Block suspicious IP ranges

👉 This creates layered security

❌ Common Mistakes

• Forgetting NACL outbound rules ❌
• Allowing 0.0.0.0/0 everywhere ❌
• Using NACL when Security Group is enough ❌
• Not understanding stateful vs stateless ❌

⚡ When to Use What?

Use Security Groups when:

• You want simple firewall control
• Managing EC2-level access
• Most use cases (90%)

Use NACL when:

• You need subnet-level control
• Blocking specific IP ranges
• Adding extra security layer

Interview Questions

• What is stateful vs stateless firewall?
• Can NACL block traffic that Security Group allows?
• Why Security Groups don’t need outbound rules for response?
• Which one is evaluated first?

Best Practices

• Always use Security Groups as primary firewall
• Use NACL for additional security layer
• Follow least privilege principle
• Avoid open access (0.0.0.0/0)

Key Takeaway

• Security Groups = Smart & simple (stateful)
• NACL = Strict & powerful (stateless)

👉 Together, they provide defense in depth

Conclusion

Understanding the difference between Security Groups and NACL is essential for:

• Designing secure AWS systems
• Debugging connectivity issues
• Cracking cloud interviews

Once you master this, VPC security becomes much easier to manage.
